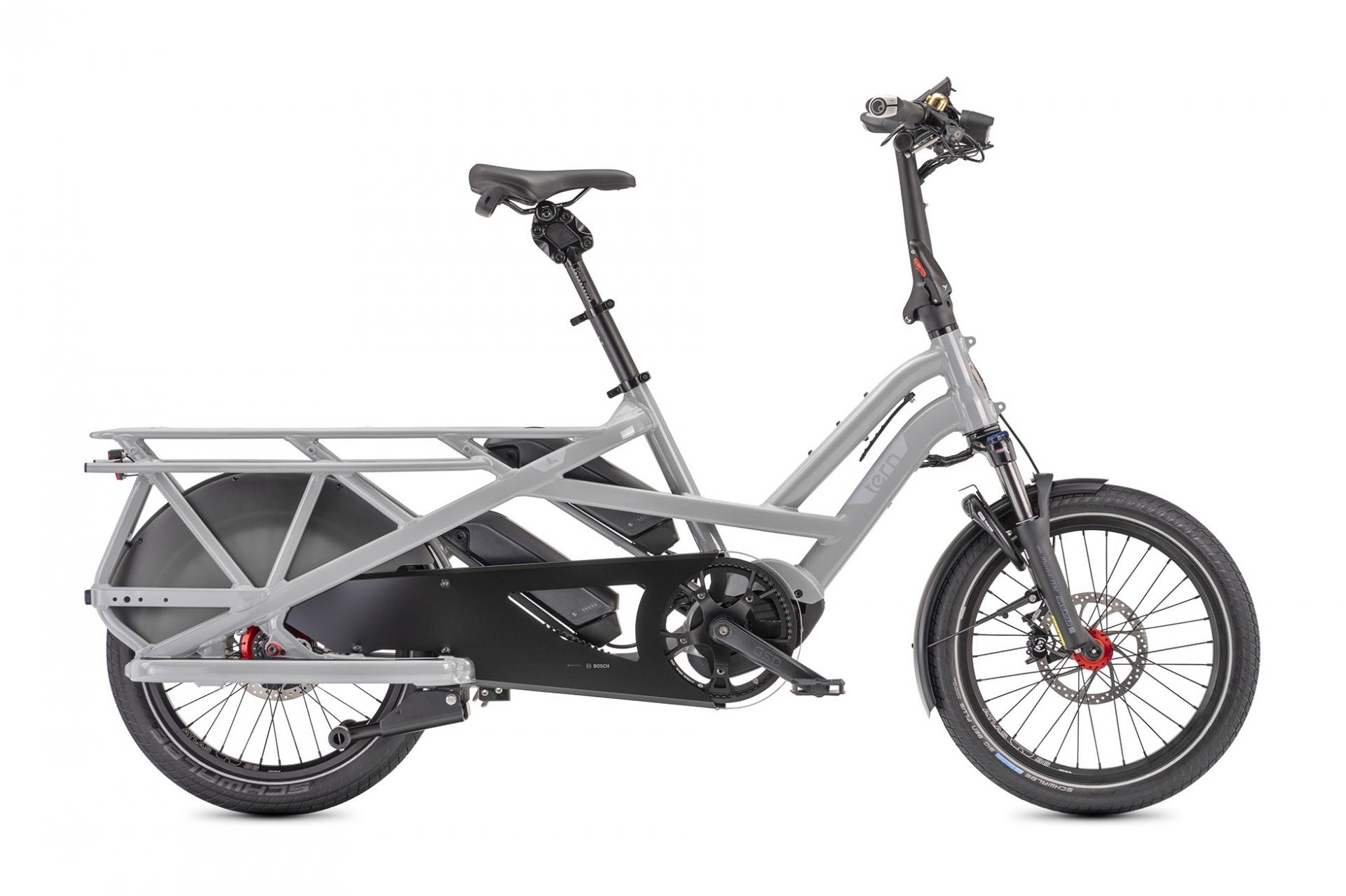

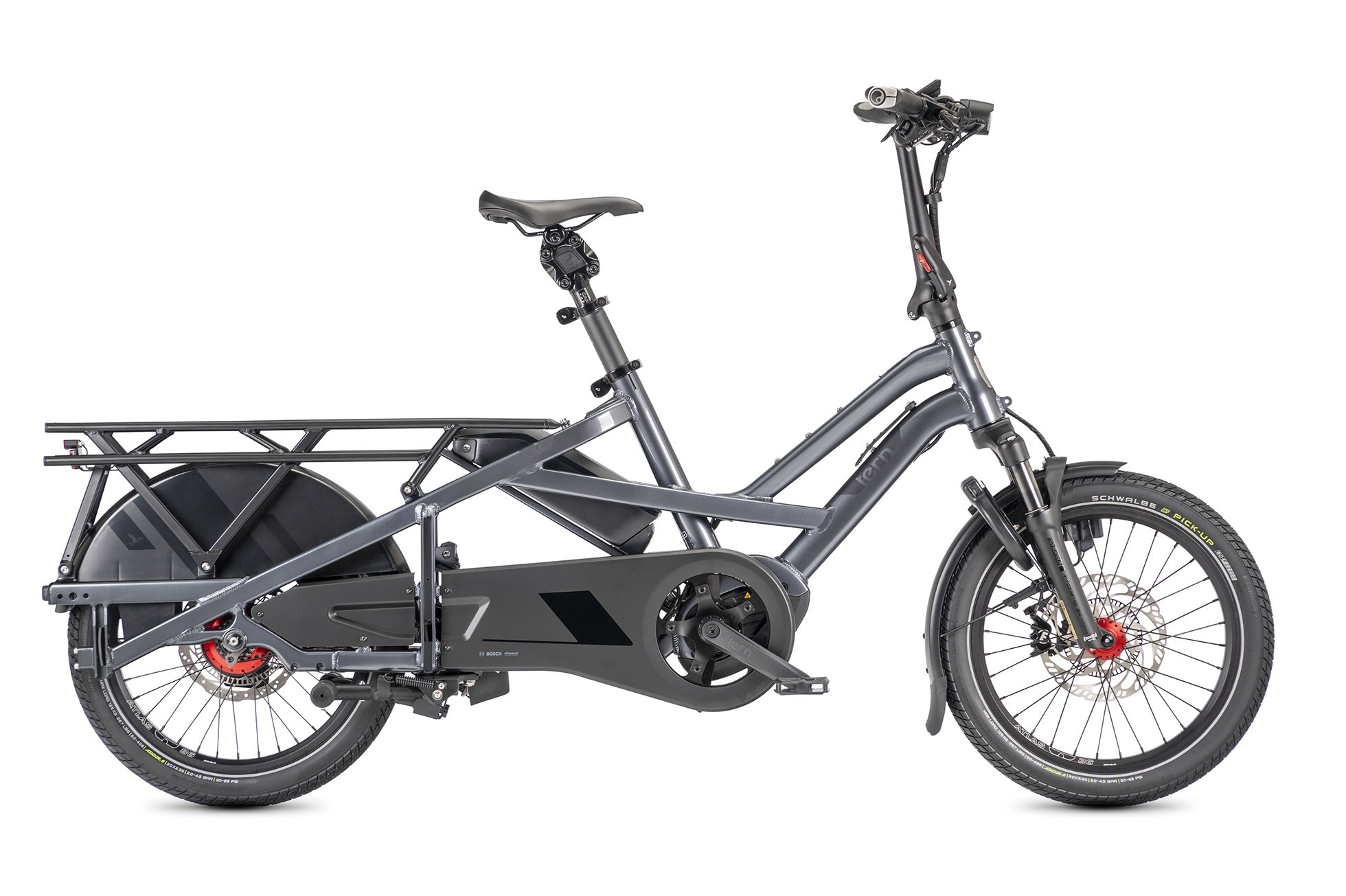

Tern GSD R14



We've some bikes for this best price left :D

With a 200 kg Maximum Gross Vehicle Weight, the GSD is ready to replace your car. It’ll let you carry two kids plus groceries, or a whole lot of cargo but it’s the same length as a regular bike and enters in the Vélo boxes of brussels. Built-in dual-battery technology lets you ride all day, while space-saving features like FlatFold and Vertical Parking make the GSD incredibly easy to own and use.

  • Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support

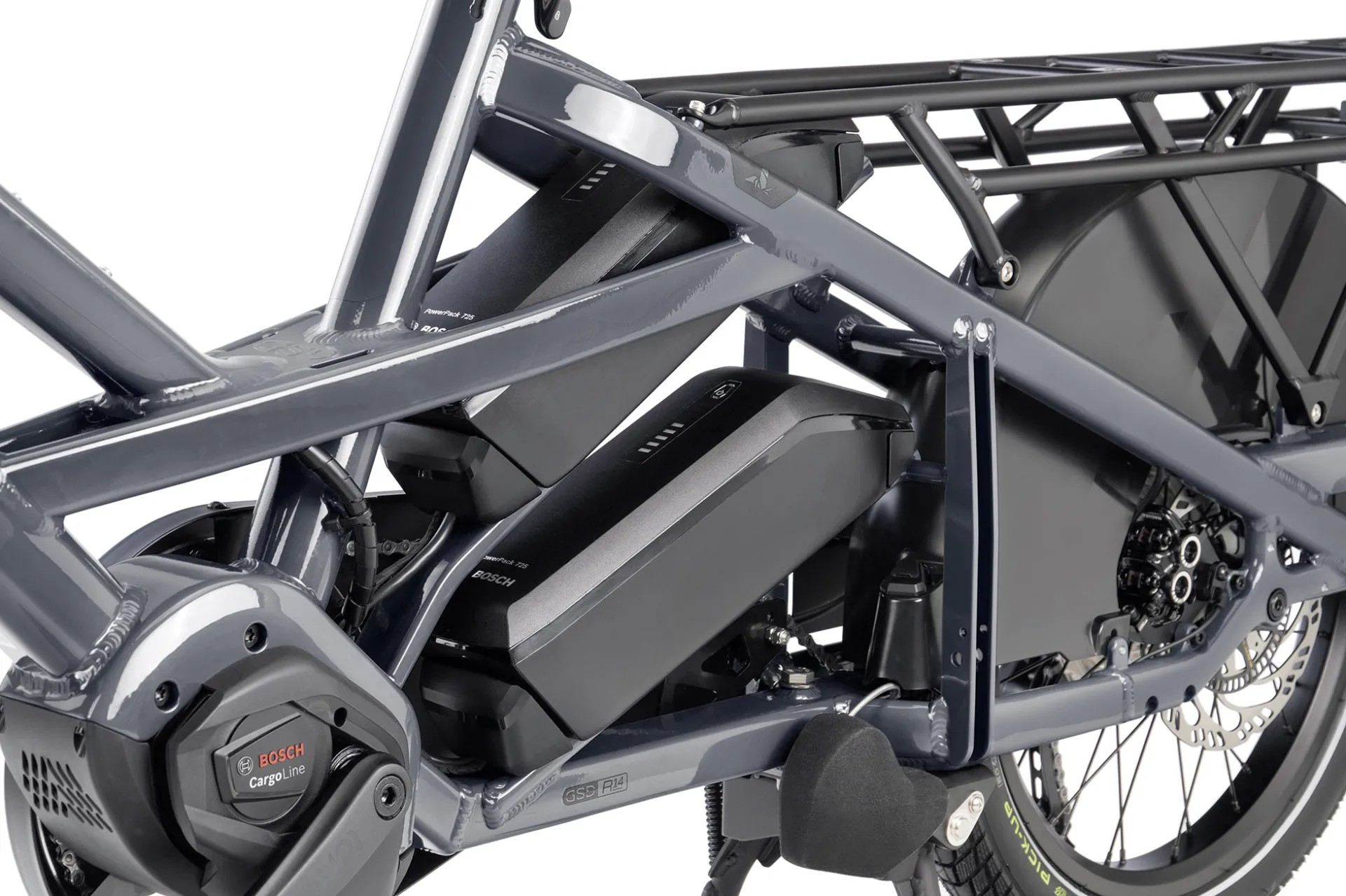

  • Bosch dual-battery system (up to 1000 Wh) for a range of up to 206 km (128 mi)

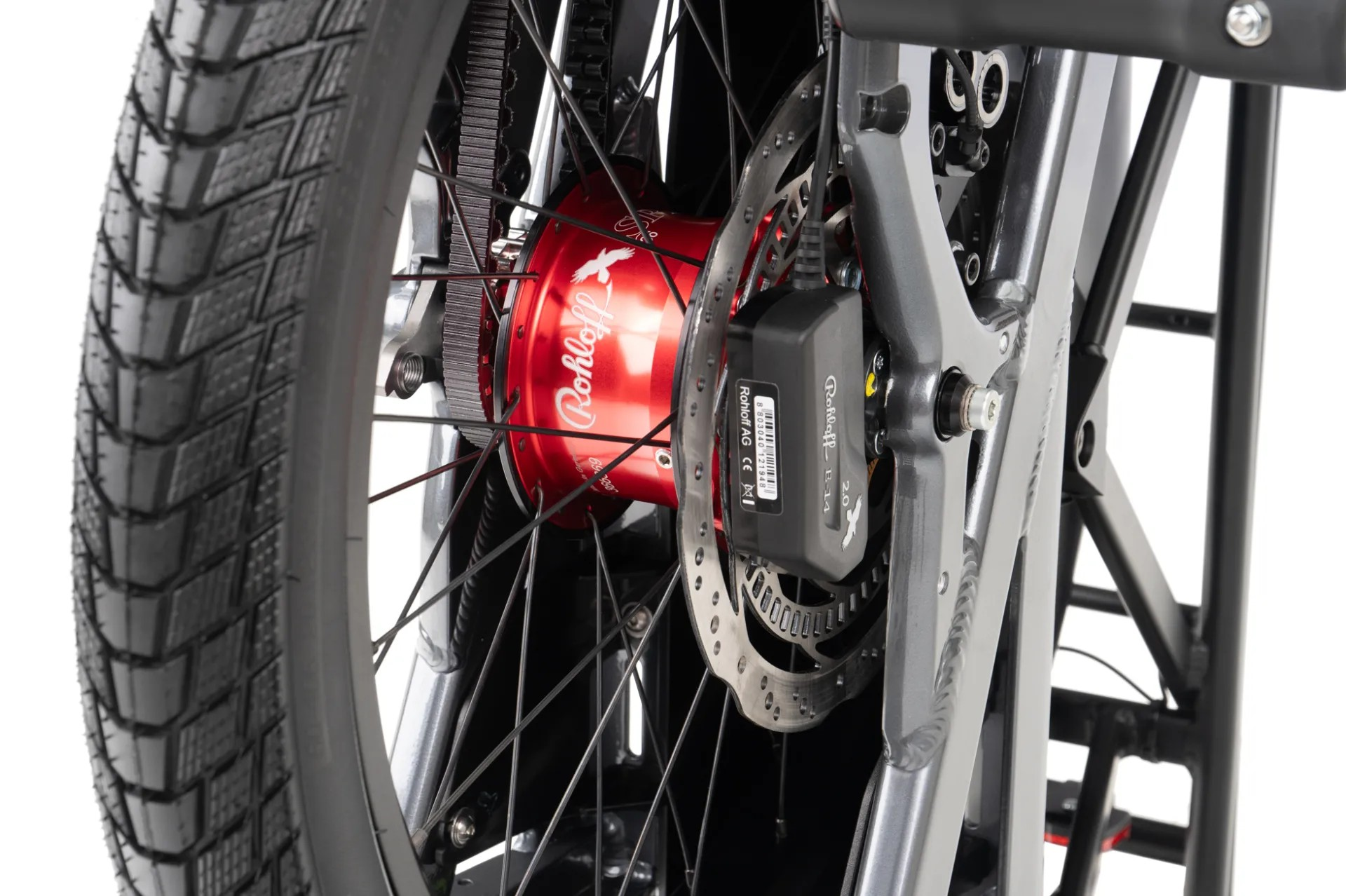

  • Rohloff® Speedhub features a 526% gear range, electronic shifting, and automatic downshifting
  • Gates® CDX Belt Drive is silent, smooth, and virtually maintenance-free

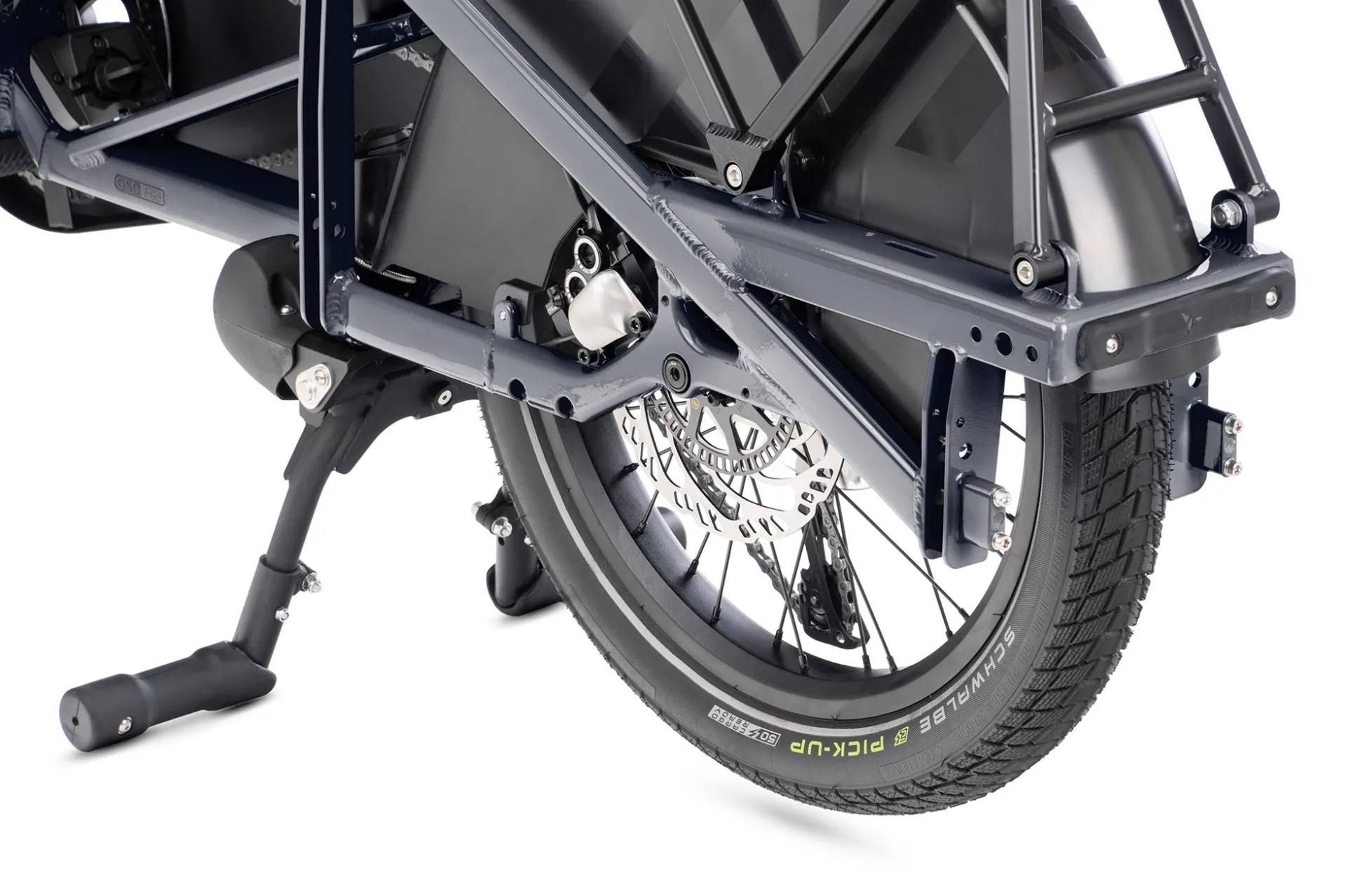

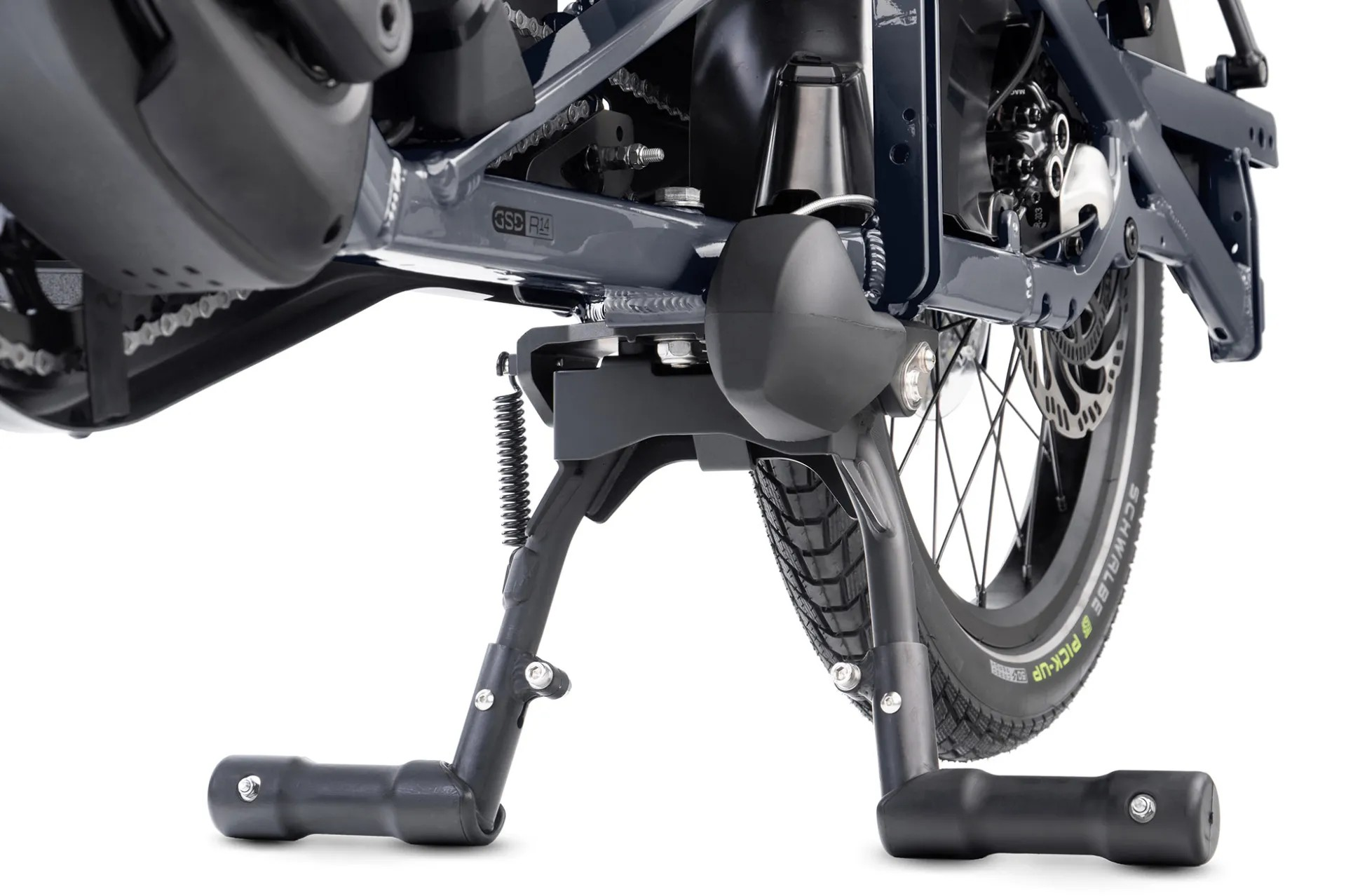

  • Super tough Atlas Lockstand™ auto-locks when engaged—just press a button on the handlebars to unlock

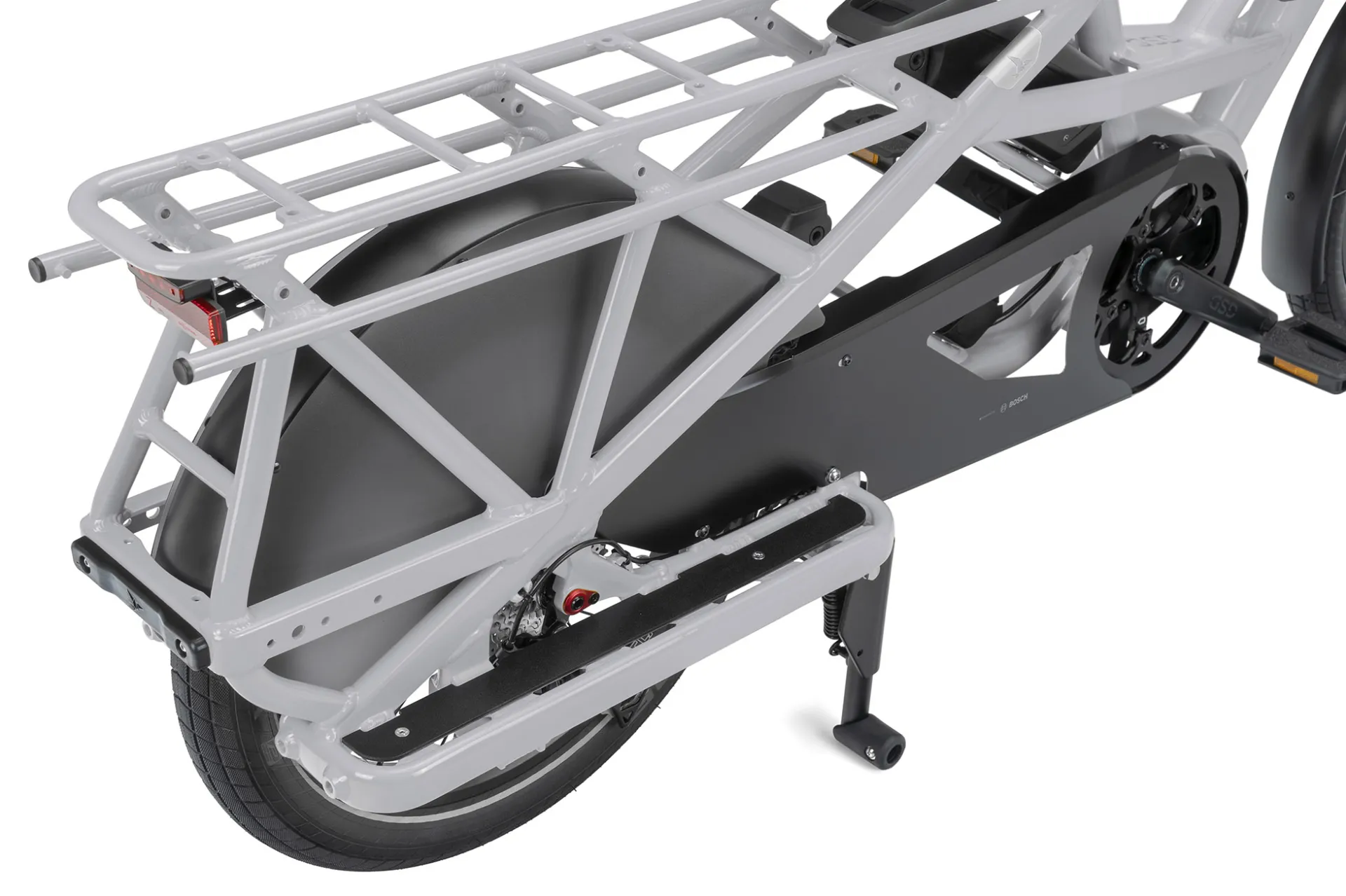

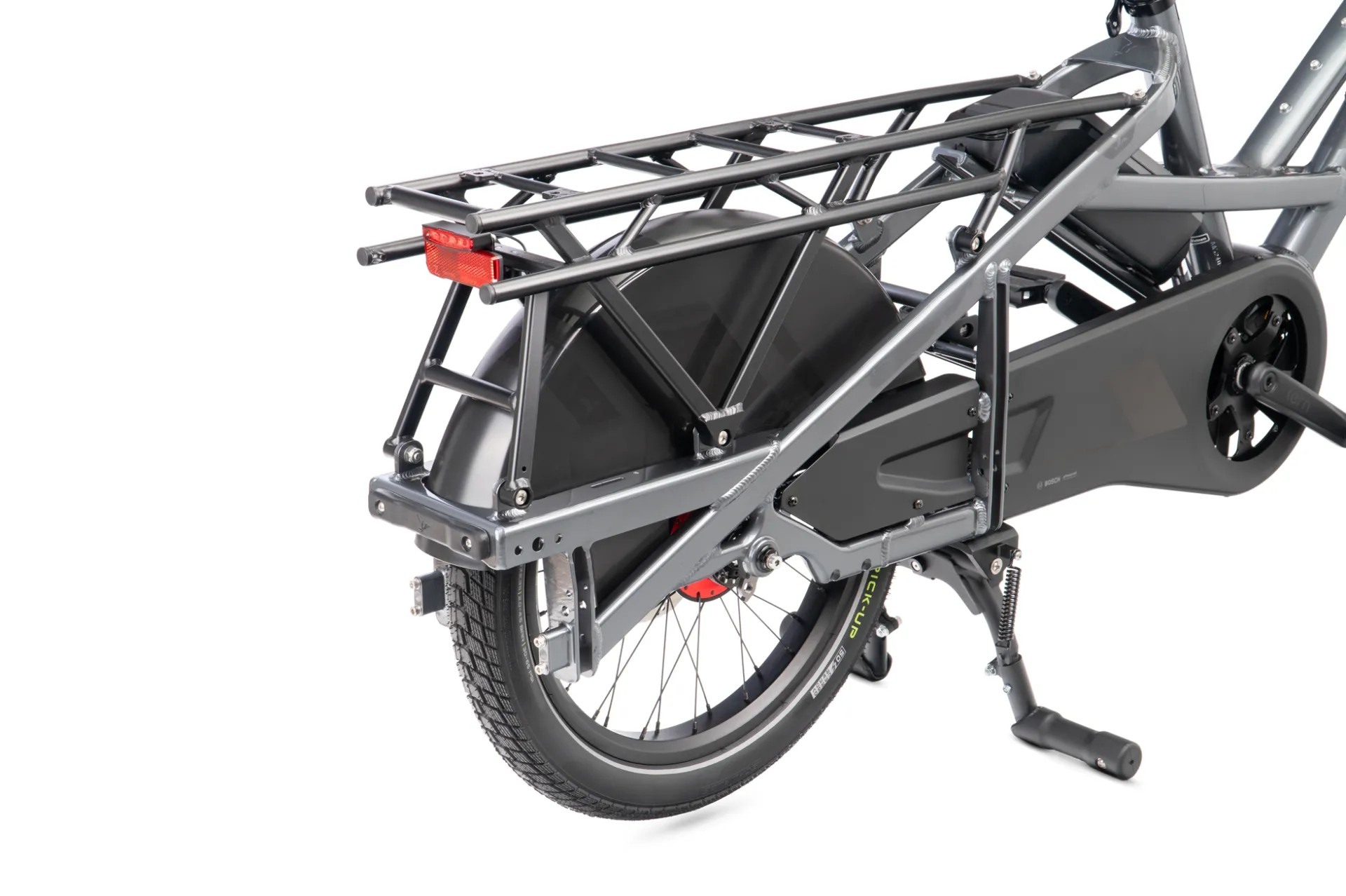

  • Heavy-duty frame-integrated rear rack and integrated lower decks
  • Cane Creek® Thudbuster ST Suspension Seatpost for an extra-cushy ride
  • Always-on RearStop™ Brake Light helps you safely signal stops
  • Ultra-bright Ignis™ Headlight ensures 24/7 visibility, no matter the weather
  • Powerful and responsive Magura® MT5 eSTOP 4-piston hydraulic disc brakes
  • Atlas Wheels with custom CNC machined hubs for extra strength and durability
Price
€6.500,00
€6.500,00
Shipping calculated at checkout.
Couleur
Battery
Available 1 Items in Stock
14 Days Return Policy
Tern GSD R14
  • Overview
  • Specifications
GENERAL INFO
- Gears: 1 x 14
- Weight: 37.26 kg (82.1 lb)
- Gear Range: 19"–102" (1.54–8.10 m)
- Folded Size: 176 × 40.5 × 87 cm (69.3 × 15.9 × 34.3 in)
- Folding Time: 5 sec
- Frame Size: One size
- Saddle to Handlebar Distance: 49–59 cm (19.3–23.2 in)
- Saddle to Pedal Distance: 69–105 cm (27.2–41.3 in)
- Recommended Rider Height: 150–195 cm (59.1–76.8 in)
- Max Gross Vehicle Weight: 200 kg (440.9 lb)
- Max Rider Weight: 120 kg (264.6 lb)

FRAME
- Frame: Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved
- Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, thru-axle, 70 mm travel

COCKPIT
- Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
- Stem: Tern Andros, adjustable, forged construction
- Headset: Tern Flux Pro Taper, 1.5", angular contact bearings
- Handlebar: Tern Sweep, 6061-AL
- Grips: Ergon
- Saddle: Tern GSD by Velo, with rear handle
- Seatpost: Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
- Seatpost Clamp: Tern Collar, 6061-AL, 2-piece

BRAKES
- Front Brake: Magura MT5, 4-piston hydraulic disc, 180 mm rotor
- Rear Brake: Magura MT5, 4-piston hydraulic disc, 180 mm rotor
- Brake Levers: Magura MT5 e-stop, hydraulic, with brake sensor

WHEELS

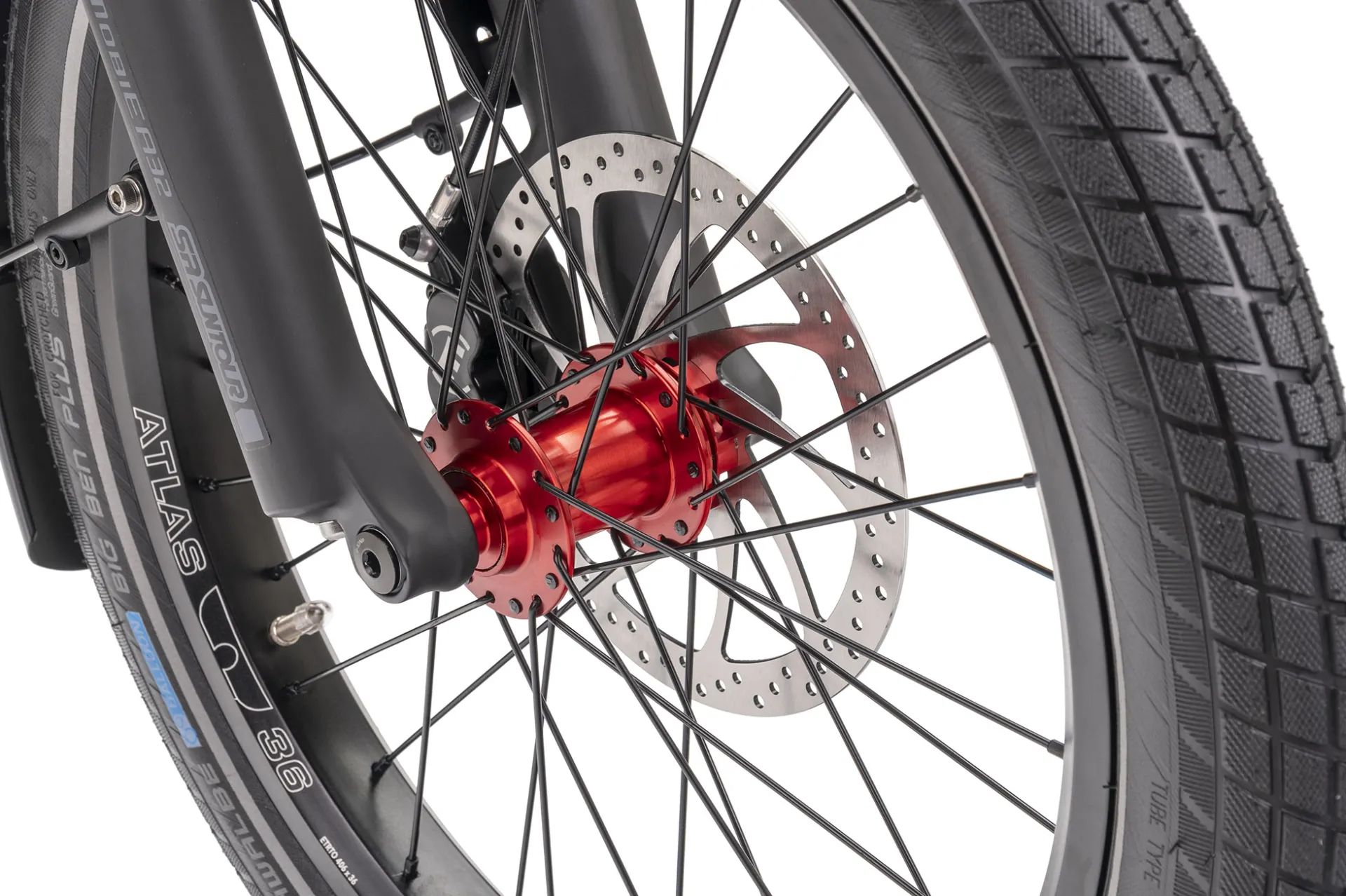

- Front Hub: Tern Atlas, Boost Thru-Axle, cargo-optimized, sealed bearings
- Rear Hub: Rohloff E14, 526% range, Boost
- Spokes: Stainless steel, 13G
- Rims: Tern Atlas, ultra-wide 36 mm, dual reinforced joint
- Tires:
- Front: Schwalbe Big Ben Plus, 55-406, GreenGuard, Reflex
- Rear: Tern x Schwalbe Super Moto-X, 62-406, GreenGuard, Reflex

DRIVETRAIN
- Shifters: Rohloff E14, electronic 14-speed
- Crankset: Tern GSD custom, Gates CDX CNC machined beltring
- Cog: Gates CDX, precision CNC machined
- Bottom Bracket: Motor integrated
- Chain/Belt: Gates Carbon Drive CDX belt
- Pedals: Urban, non-slip surface, sealed bearings
- Gear Cables: Rohloff E14, electronic

E-SYSTEM
- Motor: Bosch Cargo Line, 400% assist, 85 Nm torque, max speed 25 kph (EU) / 20 mph (US)
- Battery: 500 Wh (optional up to 1000 Wh with DualBattery system)
- Display: Bosch Intuvia, integrated with Rohloff auto downshift
- Range:
- 500 Wh: 50–101 km (31–63 mi)
- 1000 Wh: 102–206 km (63–128 mi)
- Charger: 220V, 4A (EU) / 100–240V, 4A (US)

OTHER COMPONENTS
- Bell: Pitch Plus, brass
- Chain Guard: Tern Custom, full cover
- Kickstand: Atlas Lockstand, remote unlock
- Rear Rack: Combo Mount
- Headlight: Ignis, ultra-wide 700 lumens, Hi/Lo beam
- Taillight: RearStop Brake Light, always-on
- Fenders: Integrated Wheel Guard, AL6061, with side skirt
- Cargo Mounts: Frame-integrated, heavy-duty; Max load: 100 kg (220 lb)
- Accessories: ABUS keyed-alike lock with Bosch battery
