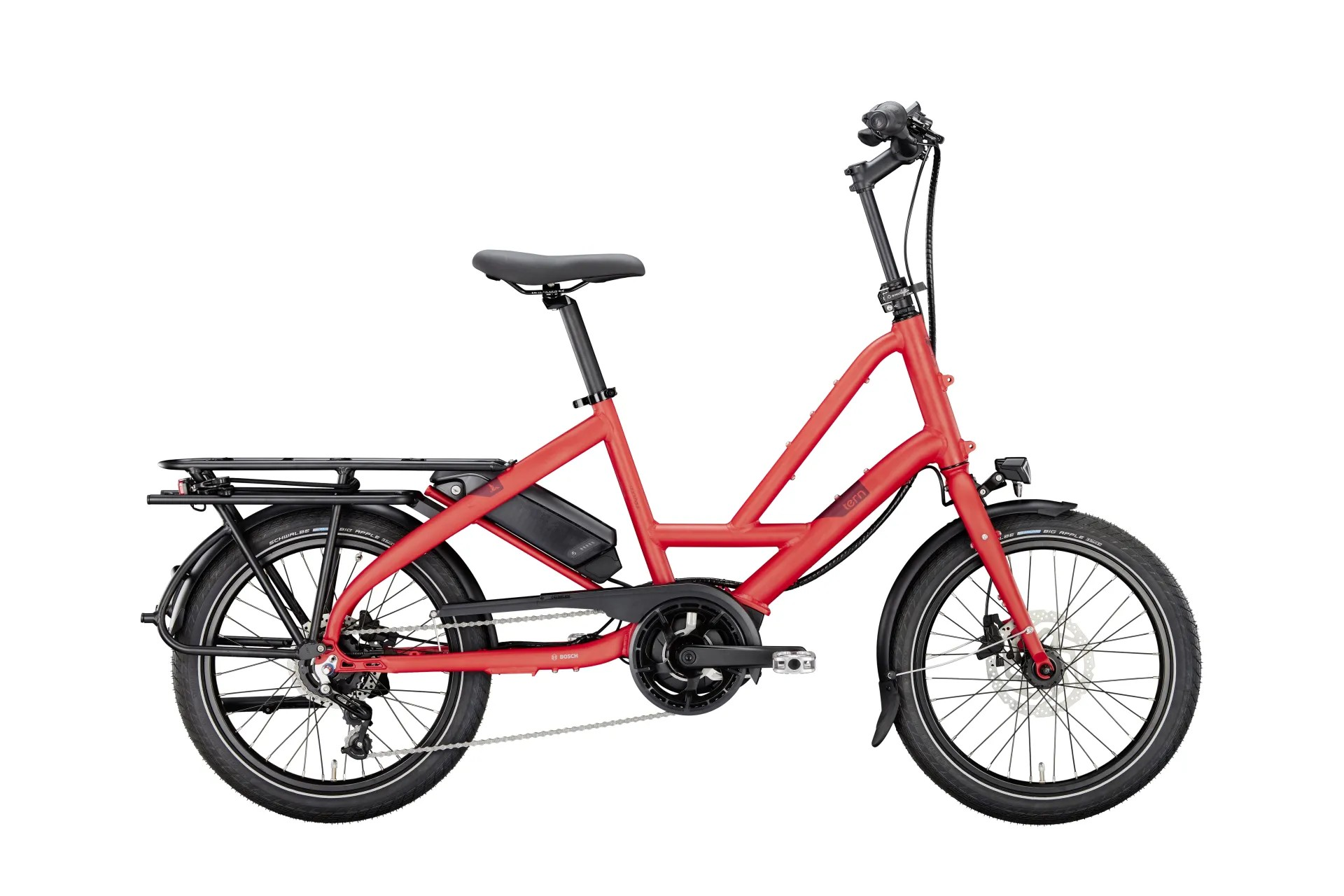

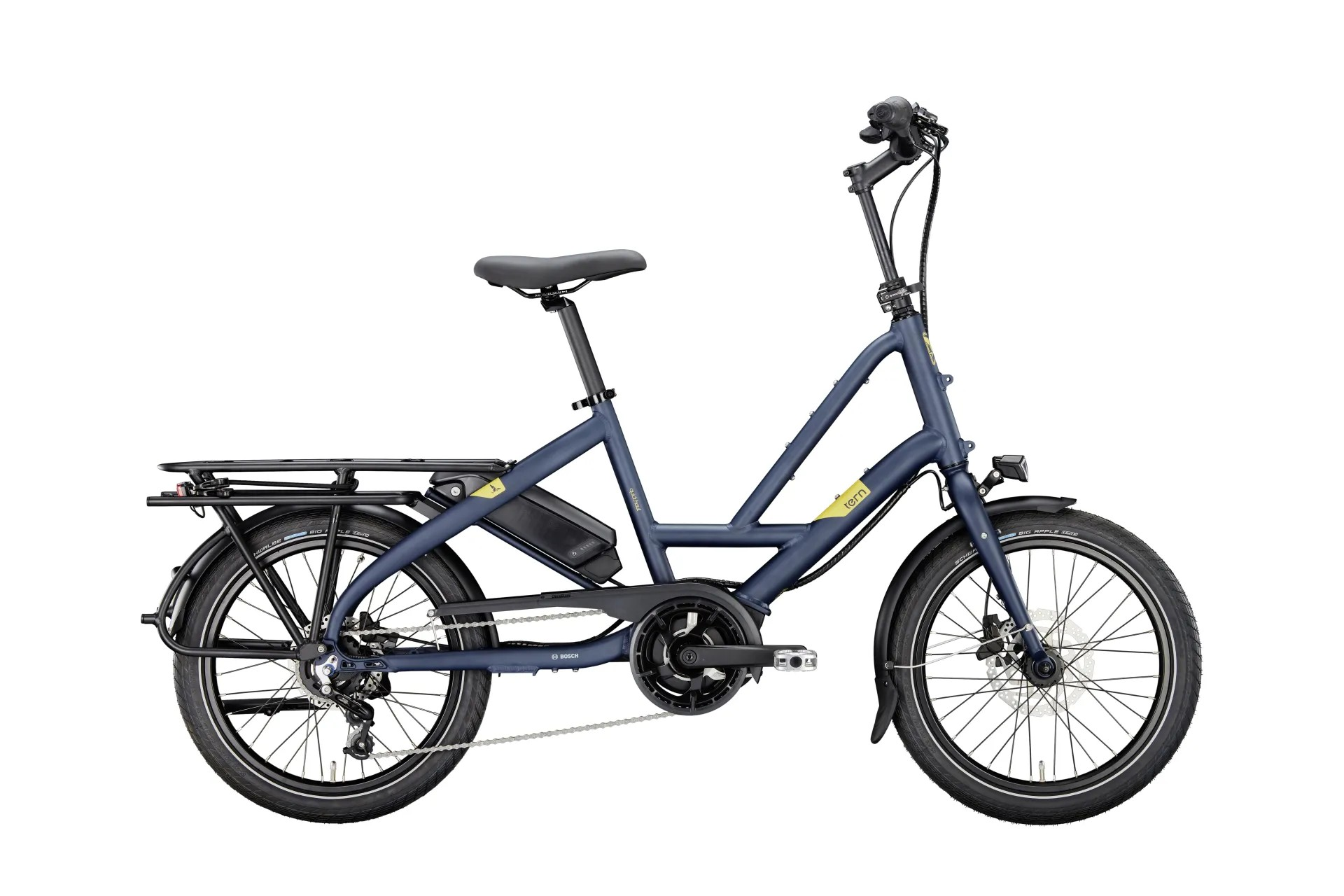

Tern Quick Haul P5i 400Wh

The Tern Quick Haul P5i is one of those bikes that simply makes everyday life easier. Compact enough to feel like a normal bike in the city, but strong enough to carry a child, groceries, work gear, or all three at once.

Powered by the reliable Bosch Performance Line motor, it gives you smooth support when the bike gets loaded or the city gets hilly. The low step-through frame makes hopping on and off easy, while the upright riding position keeps things comfortable for daily use.

What makes the P5i special is the low-maintenance setup: a Shimano Nexus 5-speed internal hub paired with a belt drive means less grease, less wear, and fewer workshop visits. Just ride it, park it, and keep moving.

Built for busy city life, the Quick Haul P5i feels stable, practical, and surprisingly fun whether it’s school drop-offs, market runs, or simply replacing short car trips around Brussels.

Why we like it at Bike Your City

• Compact footprint, easy to park and store
• Bosch motor for effortless daily riding
• Belt drive + internal gears = minimal maintenance
• Ready for child seats, bags and cargo setups
• Stable handling without feeling bulk

E-System

• Motor: Bosch Performance Line (Gen 3 BES2)
• Torque: 65 Nm
• Assist level: up to 300%
• Max speed (EU): 25 km/h
• Battery: Bosch PowerPack 400 Wh (500 Wh optional)
• Range (400 Wh): approx. 54 – 98 km depending on mode and load
• Display: Bosch Intuvia
• Walk assist: yes

Drivetrain

• Gearing: Shimano Nexus Inter-5E (1x5 internal hub)
• Shifter: twist shifter
• Drive: reinforced e-bike chain (KMC eBike specific)

Frame & Geometry

• Frame: Tern Quick Haul, aluminum 6061
• Fork: steel, cargo-rated
• Max total weight: 150 kg system weight limit
• Rider height range: 160 – 195 cm
• Low step-through: approx. 490 mm

Brakes

• Type: hydraulic disc brakes (Clarks)
• Front rotor: 180 mm
• Rear: hydraulic disc

Wheels & Tires

• Wheel size: 20”
• Rims: Schürmann
• Tires: Schwalbe Big Apple (55-406), puncture protection

Cargo System

• Rear rack capacity: up to 50 kg
• Front rack (optional): up to 20 kg
• System: Tern Atlas Q Rack / Cargo Mount system
• Compatible with child seats, cargo boxes, panniers

Lighting & Equipment

• Front light: Contec DLUX 50 Lux
• Rear light: LED integrated
• Fenders: full coverage
• Kickstand: heavy-duty double-leg stand
• Chain guard: SKS Chainblade
• Bell: included

Weight & Use

• Bike weight: approx. 24–26 kg
• Use case: urban cargo, daily commuting, kids transport, shopping, small business logistics
